Smart Metering Devices

OMS Wireless M-BUS

Lansen Smart Metering Devices are designed for the wireless M-BUS protocol  EN13757-3/4:2013 S1-M, C1 and T1. The devices are compatible with OMS (Open Metering System)
The devices have sleek design and are easy to install. The hardware is manufactured using top of the line components and more than 20000 units have been deployed. The products are ready out of the box and can be ordered customized with specific configurations. Such as: transmission interval, manufacture code, data format, etc.



Wireless MBUS sensor for Temperature, humidity, water, electricity etc

Key features of these devices are:

  • Superb antenna design.
  • AES 128 encryption, OMS mode 5
  • Very long battery life, typical at least 16 years.
  • Wide operating temperature range.
  • Works right out the box, no complex installation needed.
  • Sabotage alarm if unit is opened or removed. (not all products)
  • Low battery alarm.



Wireless M-BUS sensor for Temp, Humidity and Pulses

Temperature – AMR Wireless M-BUS

DEVICE
The ambient temperature device from Lansen is a plug-and play room temperature transmitter. Much care have been taken to design a sleek, good looking device with high security and performance. The design allows for discrete integration when mounted in home environment.

TEMPERATURE SENSOR
The on-board temperature sensor is optimized for indoor usage around +20. The external temperature probe can be used for measuring wider temperatures as well as for measuring surface temperature.

For more information please contact us or check the datasheet [link] or the technical document[Link]



Wireless M-BUS sensor for Temp, Humidity and Pulses

Temperature/Humidity – AMR Wireless M-BUS

DEVICE
The ambient temperature and humidity device from Lansen is a plug-and-play room temperature and humidity transmitter.

TEMPERATURE SENSOR
The on-board temperature sensor is highly accurate in the entire temperature range, with typical accuracy ±0,3

HUMIDITY SENSOR
The on-board humidity sensor is highly accurate in the entire
temperature range, with typical accuracy ±3%RH.

For more information please contact us or check the datasheet [link] or the technical document[Link]



Wireless M-BUS sensor for Temp, Humidity and Pulses

Pulse Counter – AMR Wireless M-BUS

DEVICE
The pulse counter device from Lansen is a plug-and-play pulse counter transmitter.

MOUNTING
The device can be mounted directly on the wall with sabotage function. An adapter can also be ordered for DIN-Rail mounting.

PULSE COUNTER
It is possible to count pulses from two devices simultaneously. These devices could be for example water meters, electricity meters (connected to the S0 port), etc. The advanced debouncing algorithm makes sure that only correct pulses are counted for high reliability. Pulses from LEDs can also be counted using an optical probe.

For more information please contact us or check the datasheet [link] or the technical document[Link]



Wireless M-BUS sensor for Temp, Humidity and Pulses

uRepeater Wireless M-BUS

DEVICE
The uRepeater is a e super small mains powered μRepeater device from Lansen. The device is a plug-and-play repeater for extending the range between a device and a collector.

PERFORMANCE
The uRepeater e device has a robust design with tamper detection if opened or removed from the wall.  The device is highly immune to electrical disturbances that could be generated from example LED lights in buildings, etc.

ROUTING
The advanced collision algorithm minimizes problems with collisions and data repetition. To ensure proper functionality a 5 seconds delay is used before repeating the message.



For more information please contact us or check the datasheet [link].



Wireless M-BUS sensor for Temp, Humidity and Pulses

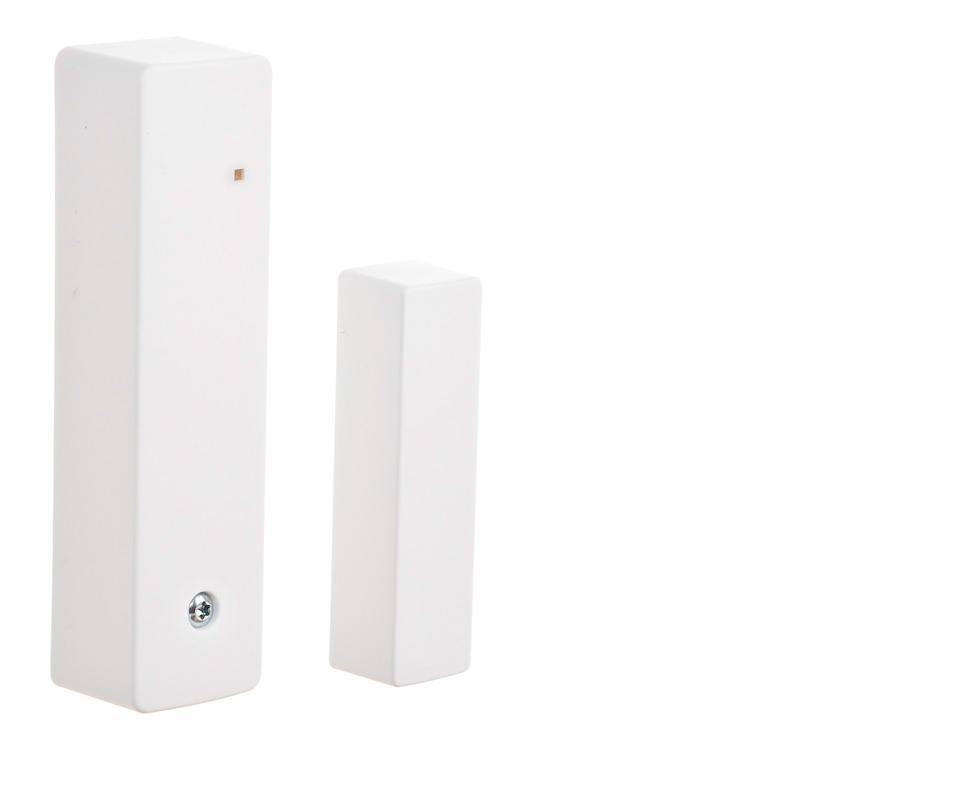

Door and Windows AMR-Wireless M-BUS

DEVICE
The Lansen door and window device alerts as soon as a door or windows is opened or closed. It is possible to use an external reed relay and magnet, as well the internal onboard reed relay to increase the functionality of the device.

USAGE
The device consist of two parts; a magnet and a sensor. A Wireless MBUS message is sent every time these are separated or rejoined.

MEASUREMENTS
The total number of openings is sent every 15 minutes using the Wireless MBUS protocol. This makes the sensor ideal for integration in data collecting systems, for energy management and HVAC control.





For more information please contact us or check the datasheet [link].
